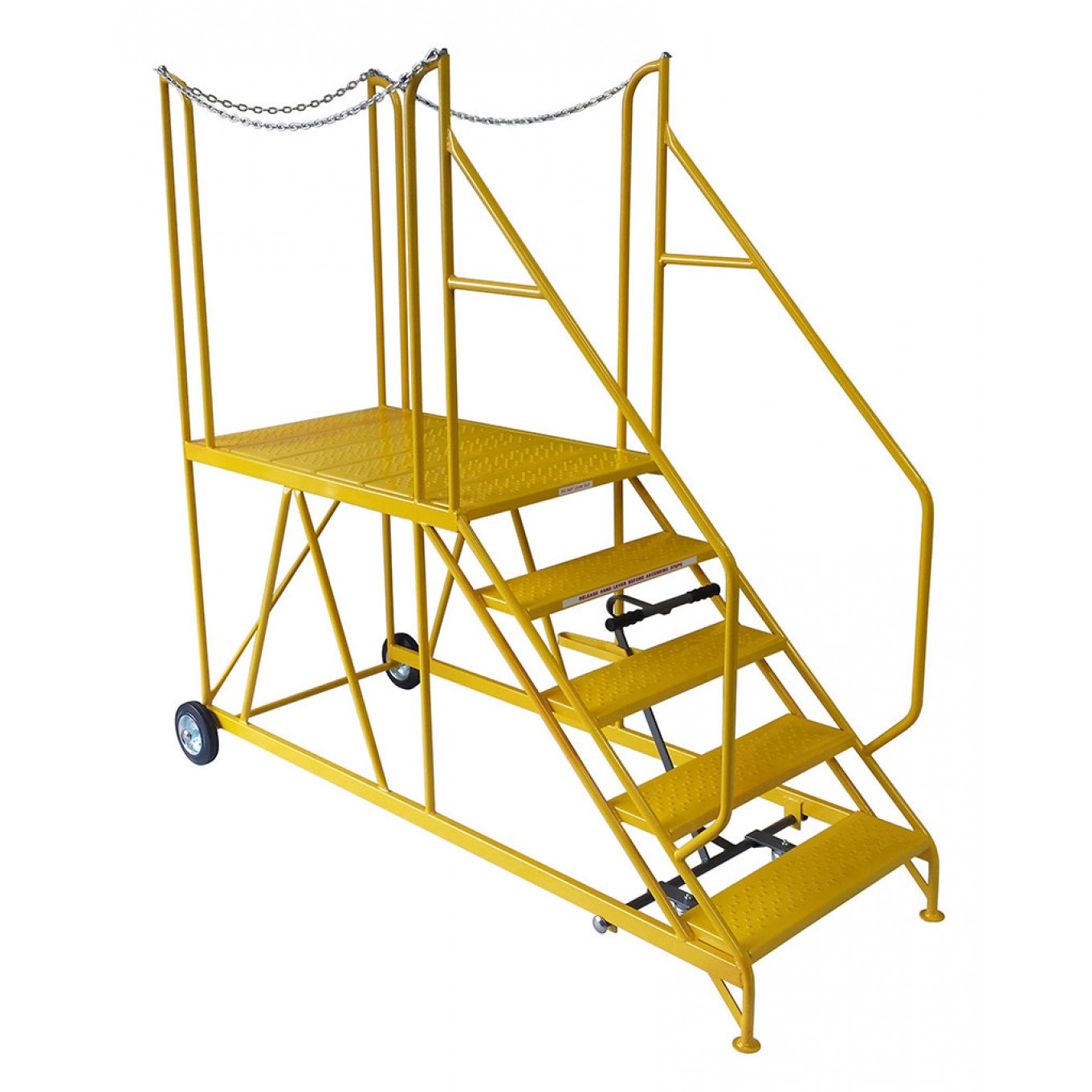

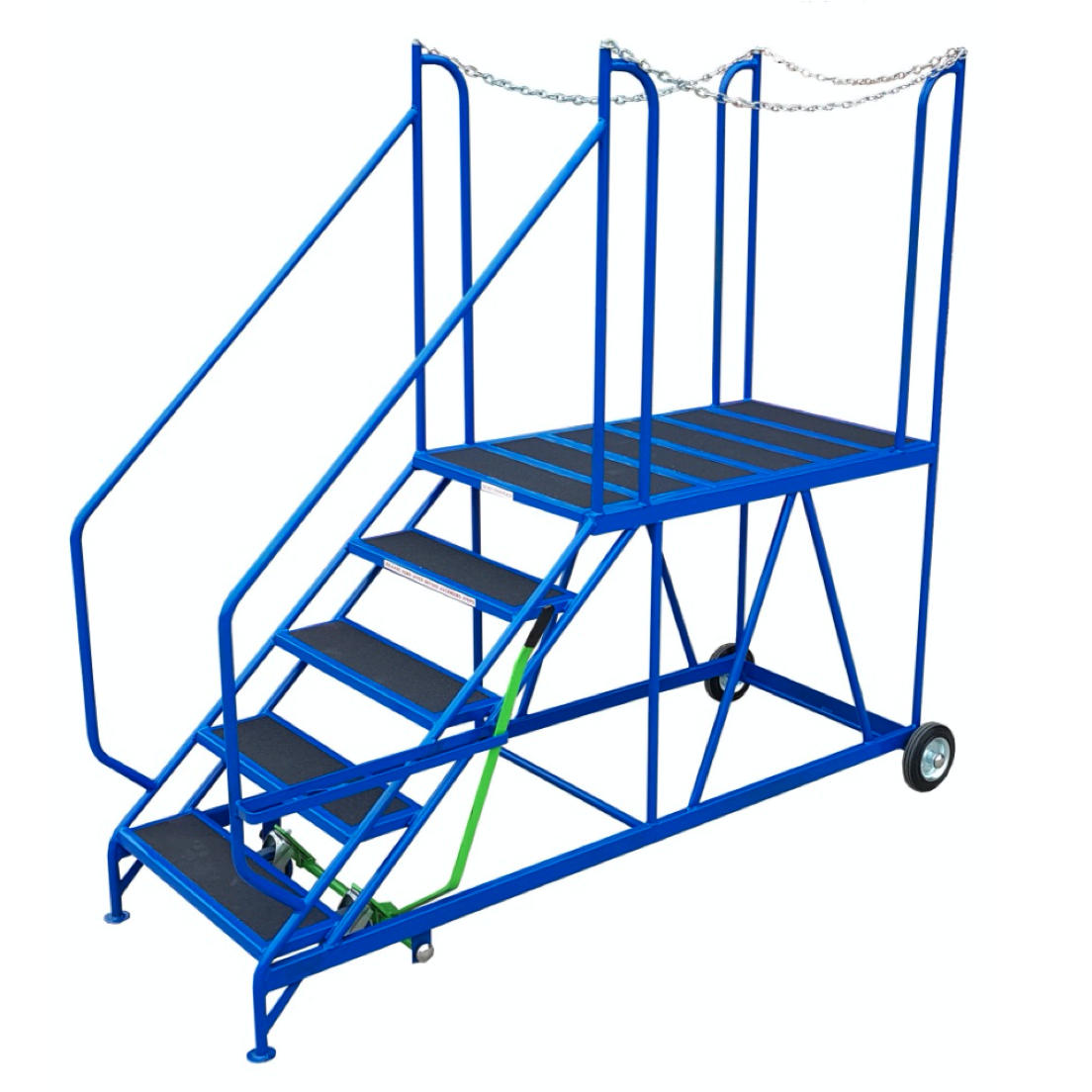

Mobile Warehouse truck dock – All platforms are made to order, currently lead times can be up to 10 weeks, please call to check availability if you need them sooner.



Our range of heavy duty truck dock platforms are designed for easily loading and unloading vehicles.  The angle of the steps is 45 degrees to ensure the user can safely descend the platform facing forwards.  The platform area is large and has three chained exits for quick release for loading/unloading.  It has a sturdy box section base and strengthened axle giving it a safe working load (SWL) of 500kg!

Product Code	Treads	Working Platform Height	Working Height	Overall Height	Overall Width	Overall Length	Weight	Brake Type
KTD 05	5	1000	2000 – 2750	2000	995	2100	75	Side Brake
KTD 06	6	1200	2200 – 2950	2200	995	2300	98	Side brake
KTD 07	7	1400	2400 – 3150	2400	995	2500	120	Side Brake
KTD 08	8	1600	2600 – 3350	2600	1080	2700	145	Side Brake
KTD 09	9	1800	2800 – 3550	2800	1080	2900	170	Side Brake

If you can’t find the product or service you’re looking for, get in touch on 0800 612 3210 or send us a message on our enquiry form.

Click here for extras and modifications including platform extensions and gate options

Up to 45% discount available

Discount will be applied to the truck dock list price at the checkout, dependent on the total value of the order.
