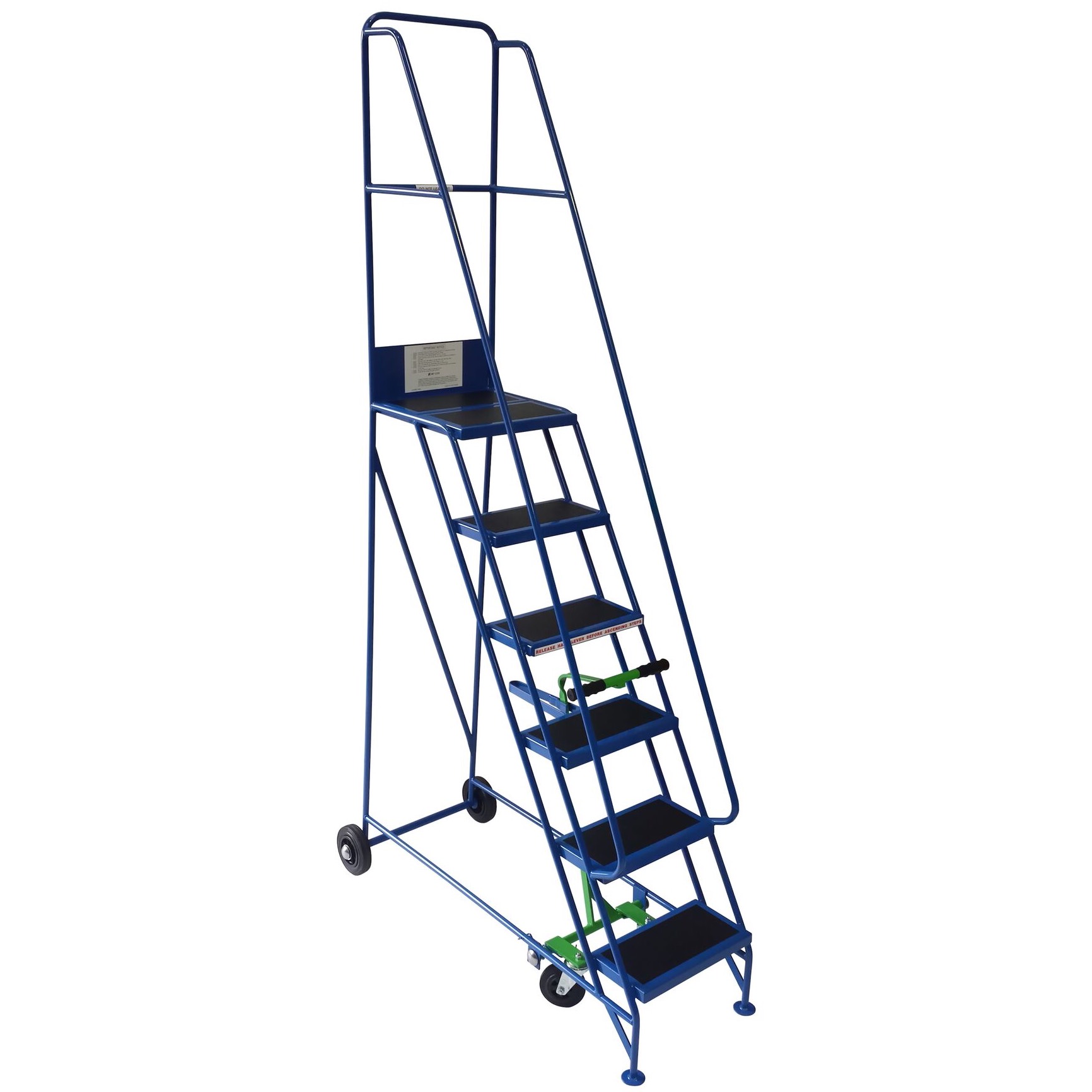

Narrow aisle mobile steps – All steps are made to order, currently lead times can be up to 10 weeks, please call to check availability if you need them sooner.

Our narrow aisle mobile steps use a 19mm tube and have a reduced tread of 450mm. They are designed to access areas with a restricted width.

2-4 tread models use four spring loaded self weight retractable castors and four rubber feet. This enables the step to turn within its own space.

5-8 tread models are fitted with a central braking system and fixed rear axle with large rubber tyred wheels.

Fully welded rigid construction in 19mm tubular steel

Tread size 450mm x 200mm

Small rubber wheels and castors for easy single operator

Large working platform of 450mm x 400mm deep

Safe working load of 300Kg

Anti-slip PVC treads for maximum grip

Product Code	Treads	Working Platform Height	Working Height	Overall Height	Overall Width	Overall Length	Weight	Brake Type
NASTEPS2	2	500	1500 – 2250	1500	590	735	24	Plunger castors
NASTEPS3	3	750	1750 – 2500	1750	590	735	33	Plunger castors
NASTEPS4	4	1000	2000 – 2750	2000	590	920	45	Plunger castors
NASTEPS5	5	1250	2250 – 3000	2250	630	1150	57	Central brake
NASTEPS6	6	1500	2500 – 3250	2500	630	1360	64	Central brake
NASTEPS7	7	1750	2750 – 3500	2750	630	1510	72	Central brake
NASTEPS8	8	2000	3000 – 3750	3000	630	1580	80	Central brake

If you can’t find the product or service you’re looking for, get in touch on 0800 612 3210 or send us a message on our enquiry form.

Click here for extras and modifications including platform extensions and gate options

Up to 45% discount available

Discount will be applied to the narrow aisle steps list price at the checkout, dependent on the total order value.
